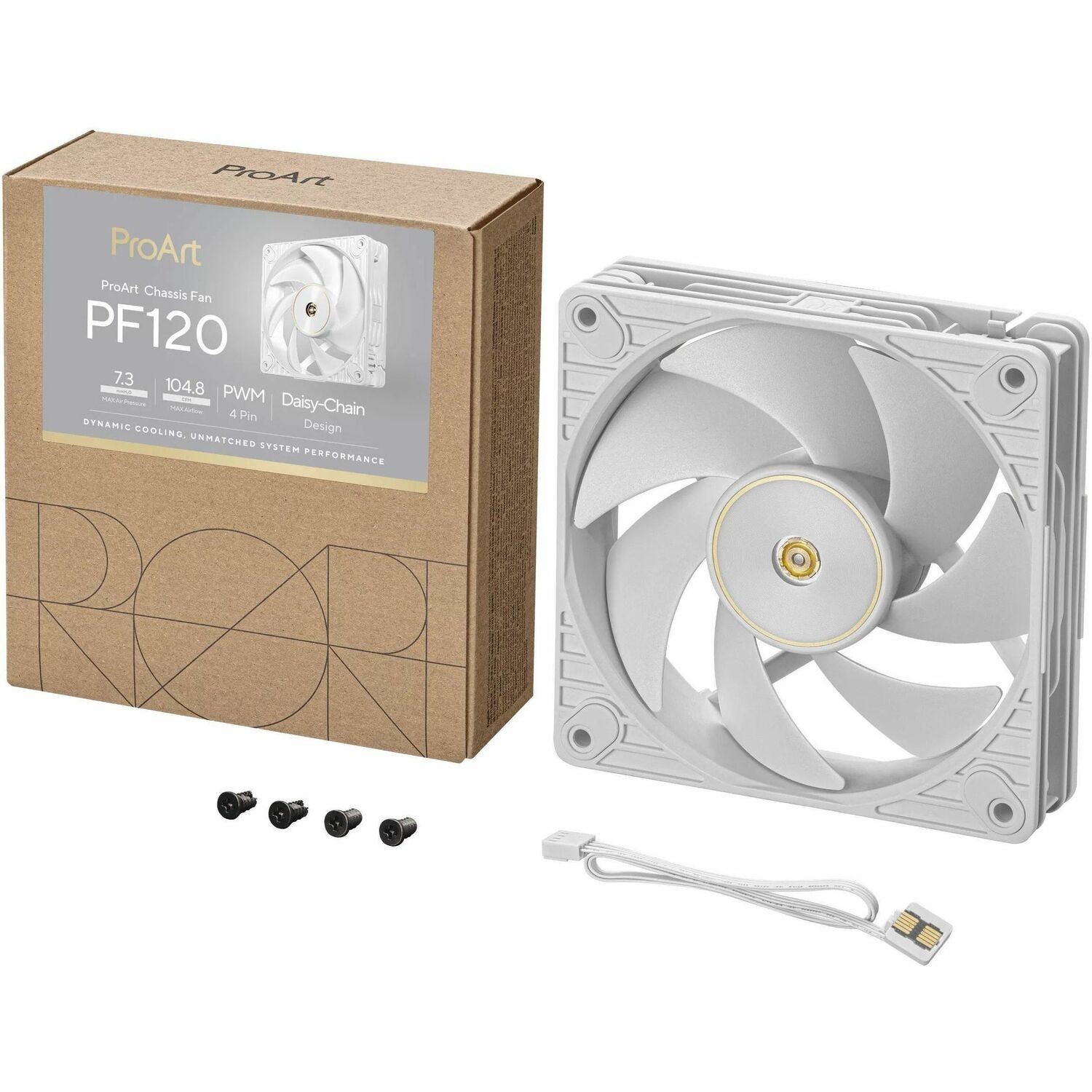

ProArt PF120 PWM Fan | The Art of Performance Cooling

The ProArt PF120 fan delivers superior cooling with premium quality and design for unmatched reliability . Boasting a 28mm frame, powerful 3-phase and 6-pole motor, CNC-milled brass bearing housing, reinforced Liquid Crystal Polymer (LCP) blades, and patented daisy-chain connectors to streamline installation and cable management, the ProArt PF120 is the ideal choice for users who demand peak performance and effortless integration.

28mm Frame Thickness

Enhances airflow with low noise

Smooth & Powerful 3-Phase and 6-Pole Fan Motor

Minimizes noise and vibration

CNC-Milled Brass Bearing Housing

Ensures reliability

• Reinforced Liquid Crystal Polymer(LCP) Blades
• Smaller 0.5mm Blade Gap for Reduced Turbulence
• Patented Daisy-Chain Connectors for Seamless Installation

Enhanced Airflow

ProArt PF120 fans provide strong airflow and static pressure to ensure a consistently perfect balance of cooling and acoustics performance.

3000rpm

Fan Speed

104.8cfm

Airflow

7.3 mmH2O

Static Pressure

Uncompromised Quality | Smooth & Powerful 3-Phase and 6-Pole Fan Motor

Powerful motor delivers smooth and robust performance by operating at a low frequency. This design minimizes noise and vibration, resulting in superior sound quality and enhanced operational efficiency.

CNC-Milled Brass Bearing Housing

The brass housing stabilizes the motor and bearings for long-term durability and reliability.

Smaller 0.5mm Blade Gap for Reduced Turbulence

A precise 0.5mm parallel gap between the fan blade and the frame enhances airflow efficiency while minimizing turbulence and noise.

Reinforced Liquid Crystal Polymer (LCP) Blades

The fan blades are made using a liquid-crystal polymer (LCP) composite that delivers exceptional strength, minimal thermal expansion, and natural vibration damping-helping to ensure high-speed operation with stable, precise performance.

PWM Fan Efficiency | PQ Curve

Under the same noise performance as competing models, ProArt PF120 fans deliver higher pressure-quantity optimization and better heat outtake efficiency.

PWM Curve

PWM support offers precise fan control via a wide speed adjustment range from 0 to 3000rpm. Users can select silent operation for lighter loads or maximum airflow for more demanding activities.

Patented Daisy-Chain Connectors

Easy fan installation and cable management are enabled via patented daisy-chain connectors, ensuring reliable, vibration-dampening connection between fans. The daisy-chain design lets users link multiple fans together using just one cable, saving time and effort while creating a cleaner, more efficient PC.

Perfectly Match Your Build

The ProArt PF120 comes in white or black, so its suitable for builders seeking to match a lighter aesthetic or a classic black look.
